Best Plug In Relays
This Omron LY2-AC24 general purpose relay has plug-in terminals, mounts to a standard bracket and is suitable for use in low current applications. This general purpose relay has a compact design and is suitable for use in installations with limited space. Specifications Contact Form. DPDT. Input Current Rating at 50Hz. 53.8 mA. Input Current Rating at 60Hz. 46 mA. Input Voltage. 24VAC. Load Rating. 110VAC, 10 amp. Dielectric Strength. 2,000VAC. Operating Temperature. -25 to +55 degrees C. Enclosure Dimensions*. 35.6 x 21.6 x 27.9mm (H x W x D). Standards Met. UL (Underwriter's Laboratories). CSA (Canadian Standards Association). IEC (International Electrotechnical Commission). Electrical Appliances and Material Safety Act. *H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Reviews
Find Best Price at Amazon"I made a custom irrigation system master valve relay switching system to operate one master valve from three different irrigation controllers."
"Just throwing that out, and I like these better than the 12V ones because the pins are bigger, they fit the socket much better than the 12V ones where the pins are skinny, and I feel like with all the vibrations they experience (for my many applications) they will fall out."
"Working like it is supposed to."
"exactly fit for my boiler damper control board."
"Omron is in my opinion the gold standard in relays/ relay accessories so I knew what I was getting."
"This relay caused my furnace electrical circuit to emit really loud buzzing noises."
Premium style relays are full featured with LED and mechanical flag indication, push to test button and typically a latching hold down door which provides a method of activating the contacts without applying power to the coil.
Reviews
Find Best Price at Amazon"I bought it to build a remotely controlled, dust collector switch with drum level detection with red/green indicator lights to visually indicate the state of the drum."
"It was an exact replacement, easy to install, works perfectly."
"I bought more of them because the first one I bought has worked flawlessly."
"It has a 10 Amp rating....printed on the side for all the world to see."

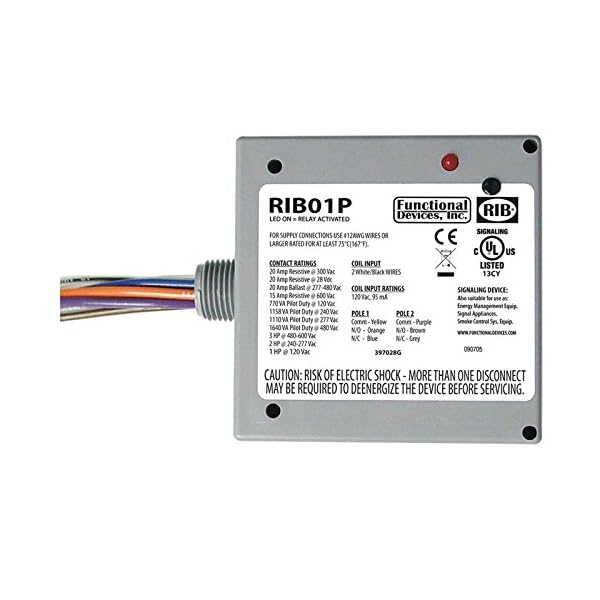

' FUNCTIONAL DEVICES INC/ RIB Relay in a Box '. Price For: Each Standards: UL Listed, CUL, CE, Cus Hz: 50/60 Lead Length: 16" Item: Enclosed Pre-Wired Relay Indicator Type: LED HP @ 240V: 2 Features: 1/2" NPT Nipple, LED Indicator, Power Relay, 16" Wire Leads Contact Form: DPDT Contact Amp Rating (Resistive): 20A @ 300VAC, 20A @ 28VDC Contact Material: Gold Flashed Silver Cadmium Oxide HP @ 120V: 1 Coil Volts: 120VAC.
Reviews
Find Best Price at Amazon"I used 2 of these to isolate control of one fan and 2 vent dampers using a single switch in each of 2 locations."
"Relay worked as expected."
Best PC Board Relays
The boards are all basic green body with soldered holes. Good plating around the holes and a nice variety of sizes for the price. - Color: green basic, silver tone. If you have any problem of our product, you can click “seller contact” button in your Amazon account to email us.
Reviews
Find Best Price at Amazon"Don't expect to be able to use solder wick to fix mistakes; the pads easily come off."
"Great proto boards."
"good quality."
"Perfect for the set of projects I have bread boarded and now to solder up."
"Great choice for cheap PRB Boards."
"Perfect size for small projects."
"High quality and excellent price."
Best Coaxial Relays
This Omron G7L-2A-BUBJ-CB DC24 general purpose relay has a test button, Class B rated insulation material, screw terminal connections, upper bracket mounting, and is suitable for use in high capacity voltage applications. This relay has a test button for checking the status of operation and Underwriter's Laboratories (UL) Class B rated insulation material for flame resistance. This general purpose relay is designed to mount to an upper bracket in an equipment rack and is suitable for high capacity voltage applications such as fluid pump controls in the water and chemical processing industries.
Reviews
Find Best Price at Amazon"In fact, this happened about a year ago with my blower motor and the repairman said the main circuit board was going bad and it would cost $1,500 to replace it. I'm relieved the pump relay didn't go first or I would have been forced into an unnecessary and expensive repair. There are models that have DC and AC inputs from the control box and connect to 110 and 220 voltage output to your devices."
"I could hear the relay trying to shutoff, when I operated it in maintenance mode, but the pump stayed on."
"After replacing the relay, the waterfalls now are controlled by the waterfall button on the control panel inside the home as they should be."
"My issue was that the main pump on our pool wouldn't shut off."
"I have a salt water system(swimming pool) that utilizes three of these relay switches."
"I called locally to several pool stores to see if I could get this relay as I had to fix our pool system quickly since we had just sold our home."
"Exact item i needed to replace my previous burned out one."
"Perfect for my Aqualink and way cheaper than pool places!"
Best DIN Mount Relays
20 amp SPDT, 24 VAC/DC/120 VAC coil, sold as each, Functional Devices RIB2401B enclosed relay, 20 amp SPDT with 24 VAC/DC/120 VAC coil.
Reviews
Find Best Price at Amazon"In short, if you turn on our hood and the HVAC unit isn't already running, this relay will engage the fan on High so that the make-up air works as it should."
"Using many of these all the time in various installations as an electrical contractor."
"I needed a unit that handles 20 amps and this works great."
"I have an aquarium chiller that draws more power than my aquarium controller can safely supply."
"I needed a way to activate an outlet when my thermostat turned the AC on."
"Really good relay product."
"I needed a relay to handle the high wattage of a bathroom heater from a home automation wall switch that couldn't carry that large of a load on its own."
"Used it to voice start my gas fireplace...Works like a charm."
Best Overload Relays
This is a genuine replacement part. Enter your model number to make sure this fits.
Reviews
Find Best Price at Amazon"So for about $70 (plus I bought a new start relay for $55) from Amazon, the refrigerator is cooling once again. I originally looked for this part but could not find it at other sites or on Amazon."
"My beloved GE Fridge was blowing air but it wasn't cold.After calling a parts specialist, she told me to check the box near the compressor in the fridge."
"But I noticed that our LG refrigerator has the same compressor (Embraco model EGZ 70HLP) as the GE refrigerator that uses this WR07X10097 part."
"Newer style than what I had on my GE Profile bottom freezer."
"After reading numerous issues relating to my GE Profile Bottom Freezer refrigerator, I was concerned I would have to shell out big time $$$$ to either replace or have a technician come in to assess things."
"I was about to buy a new fridge as the compressor was drawing 9 amps."
"Product and Manufacture description CLEARLY states this is a genuine GE part - Amazon post reads "This is a genuine replacement part. I "universal" part with a picture description of how to adapt it for the actual GE part I ordered."
Best Solid State Relays
Input control signal voltage: 0V - 0.5V Low stage (SSR is OFF), 0.5V - 2.5V (unknown state), 2.5V - 20V High state (SSR is ON); SSR Output (each channel); Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0.1 to 2 AMP.
Reviews
Find Best Price at Amazon"A great addition to the Christmas Light control system!"
"Got this to control my Christmas lights."
"Has been working solid (pun) for quite a while now and no failures."
"When I saw this board for the price, I ordered one to test out with my Arduino Mega board and it took all of 10 minutes to get it hooked up and working like a champ."
"So nothing else mentions it absolutely positively, and I was a bit worried, because the RPi uses a +3V output, instead of the standard +5V. The pins are pretty much laid out like an electrical switch on the wall."
"I used this with a Raspberry Pi to build a touchscreen operated, Wi-Fi connected, garage door control unit and freezer monitor with an custom-made iPhone app."
"First one arrived defective."
"I use 12 of these boards to control my Christmas light shows."
Best Phase Monitoring Relays
The new 3UG4 line monitoring relays permit a maximum degree of protection to be achieved for machines, plants and systems. This means that line and voltage faults can be detected early on and the appropriate response is initiated before far more significant subsequent damage can occur..
Reviews
Find Best Price at Amazon"I purchased this to replace an OEM part in the control cabinet of my 50HP Compressor at my shop."
Best Voltage Monitoring Relays
Specifications: Relay Module: SRD-DC03V-SL-C. Channel: 1 channel. Working Voltage: DC 3-3.3V. Compatible Load: 10A 250VAC / 10A 30VDC. Single Socket Length:7.5mm. Response Time:<20ms. Module Size: 70mmX17mmX20mm.
Reviews
Find Best Price at Amazon"Cool little devices."
"I build with arduino, in place of an led these will function."
"great."
"Works great with 3.3V ESP8266 units."
"Worked perfectly for raspberry pi 3.3v application!"
"Took awhile to show up (over-seas shipping), but work exactly as expected."
"Works perfectly with 3.3V micro-controllers."
"Perfect for 3v logic level boards like most ESP8266-based boards."
Best Current Monitoring Relays
Get the facts you need to decide if it’s finally time to get that shiny new refrigerator or learn the shocking truth of just how much of an energy hog that old air conditioner is. Enter your model number to make sure this fits.
Reviews
Find Best Price at Amazon"A couple useful pointers that may not be immediately apparent: -to clear the stored usage data, press and hold down the KWH/Hour key in standard mode. Update it to your local rate (you can get this info by contacting your local power company) and press the Pro button to save. 2. the user manual. True to its nature as a "designed for dummies" product, this KillaWatt's user manual is well written and easy to follow! I get that it's probably good for not adding any extraneous power draw, but an option to light it for a second or two would be very useful since a lot of times, the unit would be in a tight spot behind appliances or furniture and it's almost impossible to read the screen without grabbing a flashlight. The device is rated to take max voltage of 125V @ 15A, or a total of 1875 VA. Another reviewer mentioned that his KillaWatt failed after using it to monitor his electric vehicle. My old microwave with a digital clock was drawing close to 3 watts just idling - I've since decided to only plug it in as needed. My toshiba laptop has a nifty software monitoring tool that tells me how many watts it's drawing at any given time."
"I picked up the P3 P44545 to measure power usage of appliances around the house. My utility bills me based on the number of kW.h used for the month. The P4455 does provide an estimate for the cost per day, week, month in $ (nice) and CO2 per day, week, month, but oddly not the kW.h per day/week/month! While it's nice that it computes the cost (based on a rate per kW.h that you program into the device), this isn't sufficient to calculate cost when your utility has variable rates depending on usage (like my utility does). Note that you can derive the kW.h per day/week/month by dividing the total kW.h used by the total hours (both recorded) to arrive at the average power and then scaling according to the number of hours per day/week/month respectively."
"This by far is the best deal you can get on a newer P3 monitor which doesn't loose it's memory when it's disconnected from the power like the older P3 models do. UPDATE: I was just going to order another one of these units and I see that the price has astronomically increased since my last purchase."
